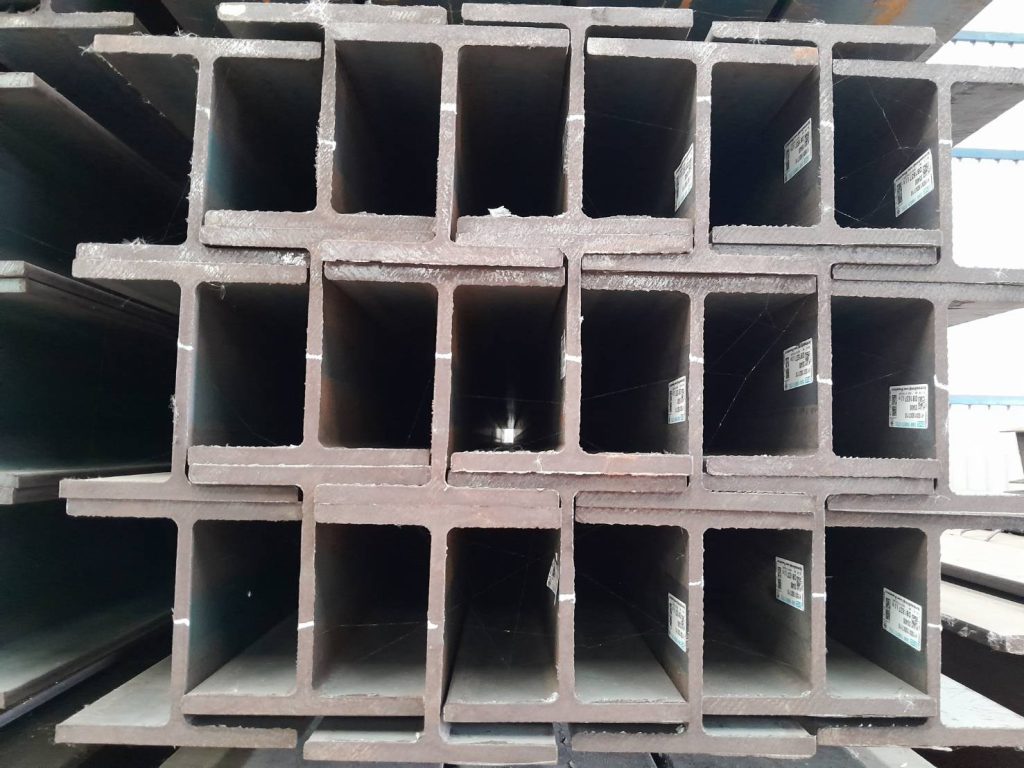

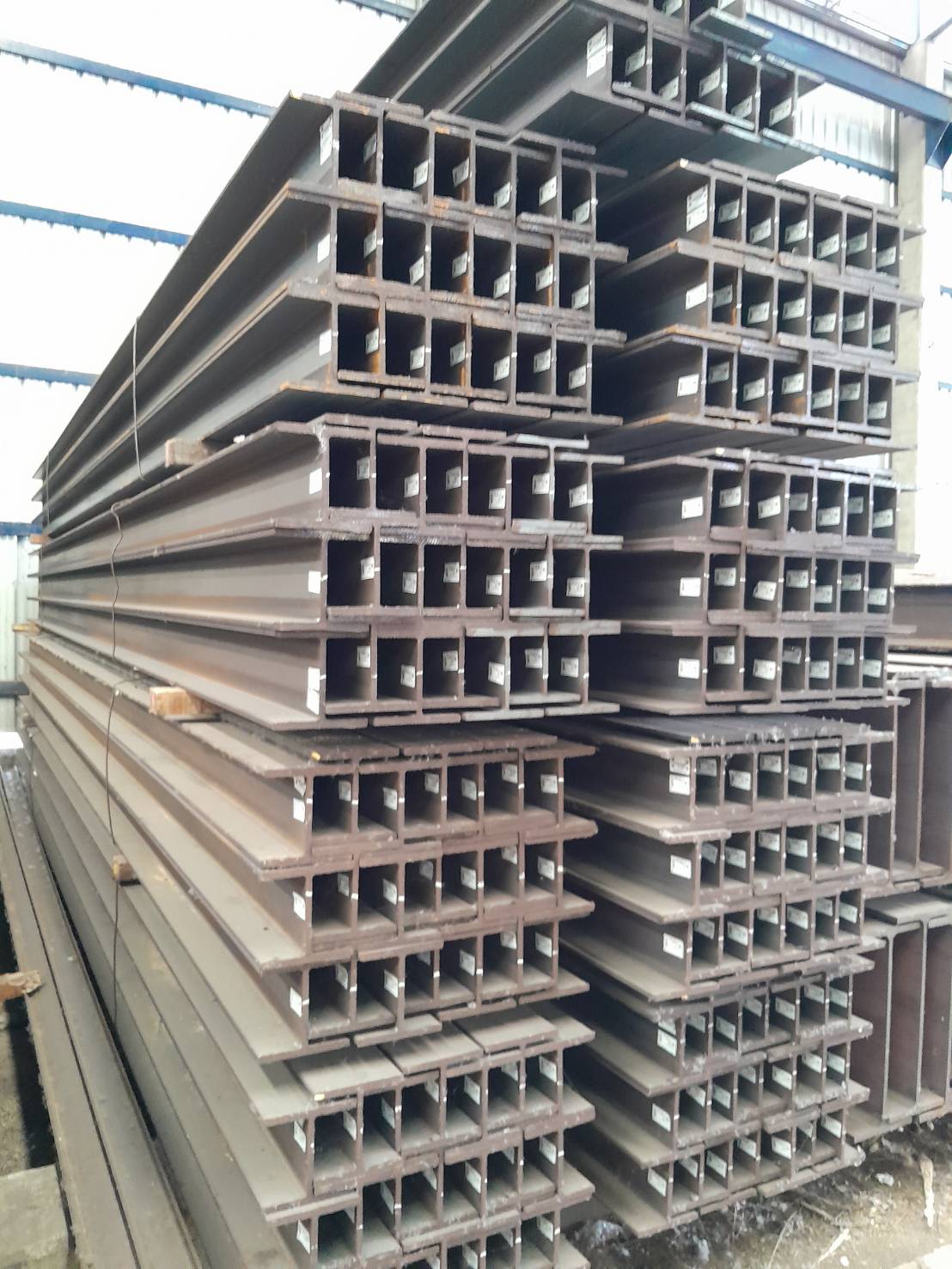

รายละเอียดสินค้า (เหล็กเอชบีม)
| Nominal Size (mm.) H X B | Sectional Dimension | ||||
| t1 | t2 | Weight | |||
| kg./1 m. | kg./6 m. | kg./9 m. | |||
| 100 x 100 | 6 | 8 | 17.2 | 103.20 | 154.80 |
| 125 x 125 | 6.5 | 9 | 23.8 | 142.80 | 214.20 |
| 150 x 150 | 7 | 10 | 31.5 | 189.00 | 283.50 |
| 175 x 175 | 7.5 | 11 | 40.2 | 241.20 | 361.80 |
| 200 x 200 | 8 | 12 | 49.9 | 299.40 | 449.10 |
| 250 x 250 | 9 | 14 | 72.4 | 434.40 | 651.60 |
| 300 x 300 | 10 | 15 | 94 | 564.00 | 846.00 |
| 350 x 350 | 12 | 19 | 137 | 822.00 | 1233.00 |
| 400 x 400 | 13 | 21 | 172 | 1032.00 | 1548.00 |
