เหล็กแบนตัด

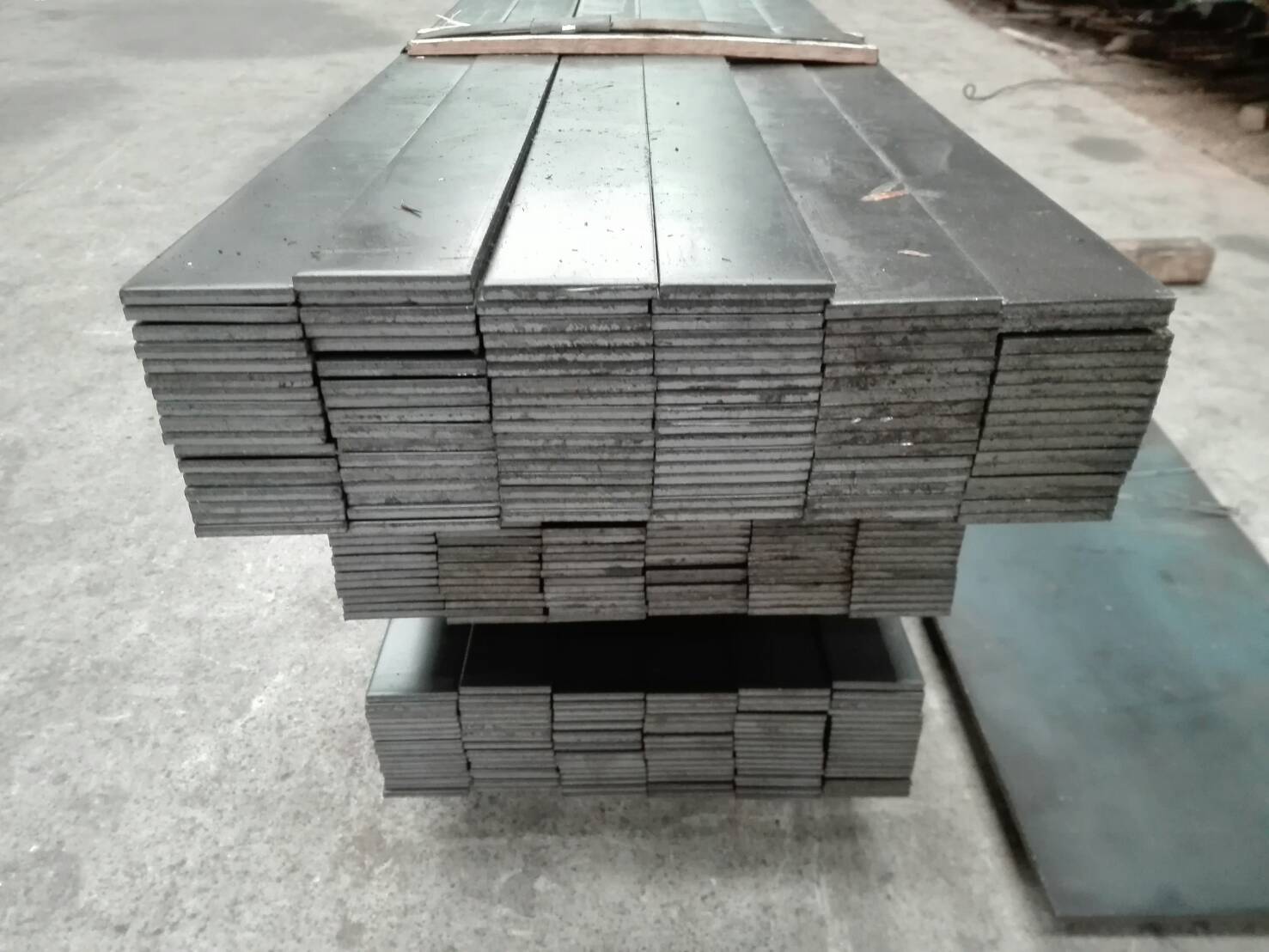

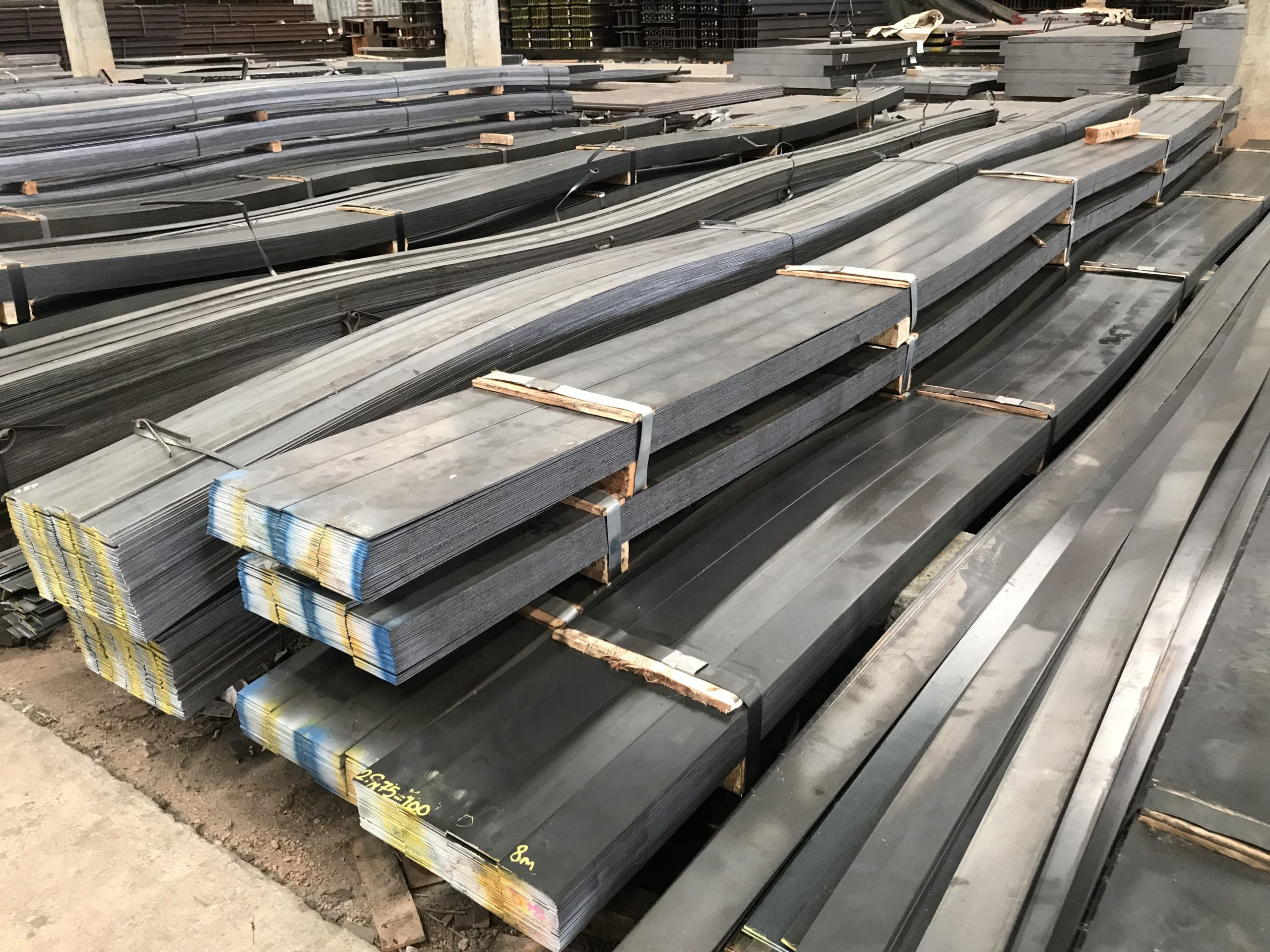

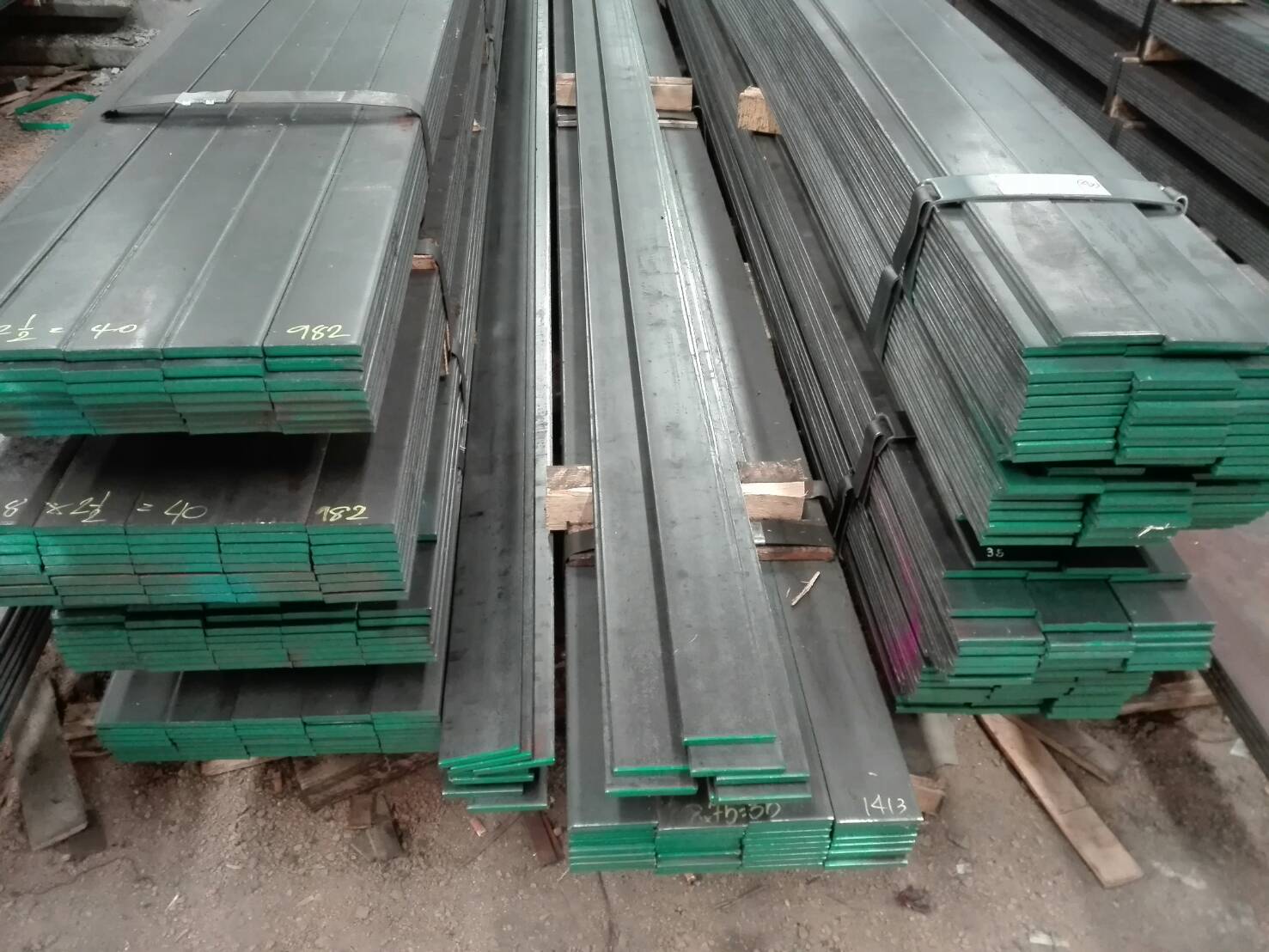

Steel Flat Bars Cut
ติดต่อสอบถาม ข้อมูลสินค้า
Email: [email protected]
รายละเอียดสินค้า (เหล็กแบนตัด)
| Size (mm.) | Weight (kg.) | |||||||
| 3 mm. | 4.5 mm. | 6 mm. | 9 mm. | 12 mm. | 15 mm. | 19 mm. | 25 mm. | |
| 12 mm | 1.70 | 2.50 | - | - | - | - | - | - |
| 16 mm | 2.30 | 3.40 | - | - | - | - | - | - |
| 19 mm | 2.70 | 4.00 | 5.40 | - | - | - | - | - |
| 25 mm | 3.50 | 5.30 | 7.10 | 10.60 | 14.00 | - | - | - |
| 32 mm | 4.50 | 6.80 | 9.00 | 13.60 | 18.00 | 23.00 | - | - |
| 38 mm | 5.40 | 8.10 | 10.70 | 16.00 | 21.00 | 27.00 | 34.00 | - |
| 44 mm | 6.20 | 9.30 | 12.40 | 19.00 | 25.00 | 31.00 | 39.00 | 52.00 |
| 50 mm | 7.10 | 10.60 | 14.00 | 21.00 | 28.00 | 35.00 | 45.00 | 59.00 |
| 65 mm | 9.20 | 13.80 | 18.00 | 28.00 | 37.00 | 46.00 | 58.00 | 77.00 |
| 75 mm | 10.60 | 16.00 | 21.00 | 32.00 | 42.00 | 53.00 | 67.00 | 88.00 |
| 88 mm | 12.40 | 19.00 | 25.00 | 37.00 | 50.00 | 62.00 | 79.00 | 104.00 |
| 100 mm | 14.00 | 21.00 | 28.00 | 42.00 | 57.00 | 71.00 | 90.00 | 118.00 |
| 125 mm | 18.00 | 27.00 | 35.00 | 53.00 | 71.00 | 88.00 | 112.00 | 147.00 |
| 150 mm | 21.00 | 32.00 | 42.00 | 64.00 | 85.00 | 106.00 | 134.00 | 177.00 |
| 175 mm | 25.00 | 37.00 | 50.00 | 74.00 | 99.00 | 124.00 | 157.00 | 206.00 |
| 200 mm | 28.00 | 42.00 | 57.00 | 85.00 | 113.00 | 141.00 | 179.00 | 236.00 |
| 250 mm | 35.00 | 53.00 | 71.00 | 106.00 | 141.00 | 177.00 | 234.00 | 294.00 |
